Logging grabs

All Inter Grabs log grabs are quality products and very durable. Below you will find all available models.

22B

	Metric		US
Excavator Range	ton	1,5/4	lb	3,300/9,000
Weight:	kg	145	Lbs	320
Pressure	bar	300	psi	4350
Pressure rotation	bar	170	psi	2175
Oil flow	l/min	30	gpm	8
Oil Flow Rotation	l/min	10	gpm	2,6
Jaw width	mm	450	in	17,7
Jaw open:	mm	1100	in	43,3
Height:	mm	700	in	27,6
Closing force:	Kn	10	Kn	10

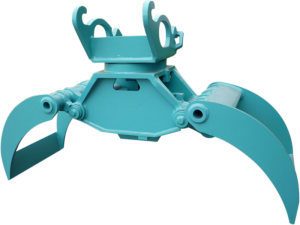

25B

	Metric		US
Excavator Range	ton	4/7	lb	9,000/20,000
Weight:	kg	350	Lbs	770
Pressure	bar	300	psi	4350
Pressure rotation	bar	150	psi	2175
Oil flow	l/min	40	gpm	13,2
Oil Flow Rotation	l/min	12	gpm	3,2
Jaw width	mm	530	in	20,9
Jaw open:	mm	1600	in	63,0
Height:	mm	900	in	35,4
Closing force:	Kn	20	Kn	20

29B

	Metric		US
Excavator Range	ton	7/10	lb	20,000/22,000
Weight:	kg	420	Lbs	880
Pressure	bar	300	psi	4351
Pressure rotation	bar	150	psi	2175
Oil flow	l/min	170	gpm	13.2
Oil Flow Rotation	l/min	12	gpm	3.2
Jaw width	mm	750	in	27
Jaw open:	mm	1600	in	55
Height:	mm	900	in	37.5
Closing force:	Kn	24	Kn	24

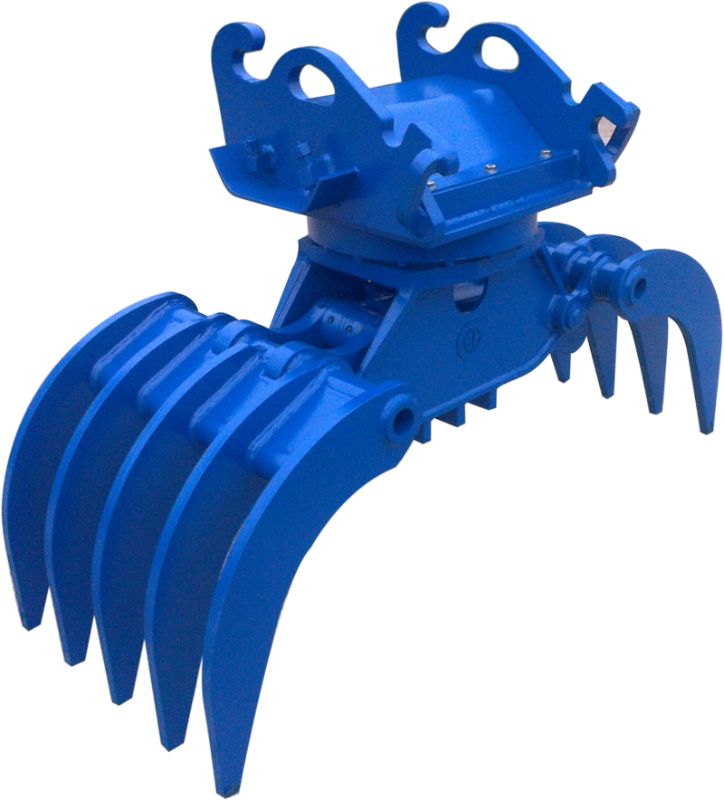

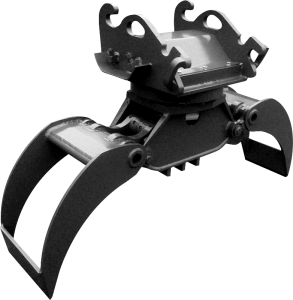

213B

	Metric		US
Excavator Range	ton	10/16	lb	22,000/35,300
Weight:	kg	700	Lbs	1550
Pressure	bar	350	psi	5075
Pressure rotation	bar	210	psi	3050
Oil flow	l/min	100	gpm	26,4
Oil Flow Rotation	l/min	25	gpm	6,6
Jaw width	mm	600	in	23,6
Jaw open:	mm	1900	in	74,8
Height:	mm	1300	in	51,2
Closing force:	Kn	35	Kn	35

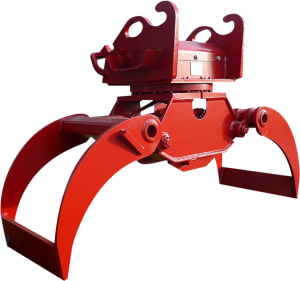

217B

	Metric		US
Excavator Range	ton	12/20	lb	26,500/44,000
Weight:	kg	900	Lbs	2000
Pressure	bar	350	psi	5075
Pressure rotation	bar	210	psi	3050
Oil flow	l/min	120	gpm	31,7
Oil Flow Rotation	l/min	25	gpm	6,6
Jaw width	mm	750	in	29,5
Jaw open:	mm	1900	in	74,8
Height:	mm	1400	in	55,1
Closing force:	Kn	40	Kn	40

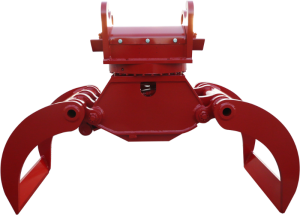

223B

	Metric		US
Excavator Range	ton	17/28	lb	37,500/60,000
Weight:	kg	1400	Lbs	3000
Pressure	bar	350	psi	5075
Pressure rotation	bar	210	psi	3050
Oil flow	l/min	170	gpm	45,0
Oil Flow Rotation	l/min	35	gpm	9,2
Jaw width	mm	900	in	35,4
Jaw open:	mm	1900	in	74,8
Height:	mm	1600	in	63
Closing force:	Kn	60	Kn	60

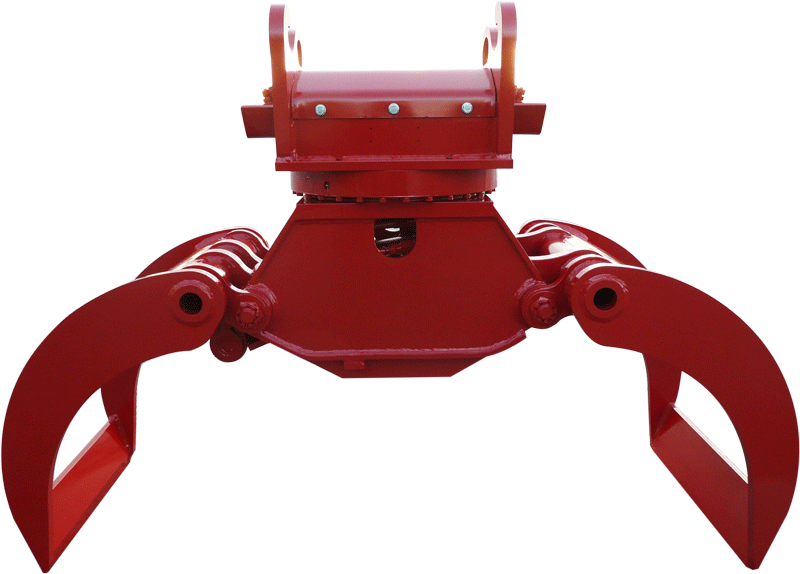

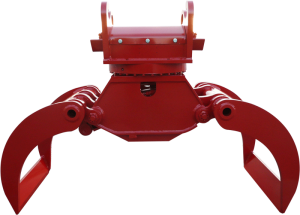

235B

	Metric		US
Excavator Range	ton	28/50	lb	60,000/110,000
Weight:	kg	2850	Lbs	6200
Pressure	bar	350	psi	5075
Pressure rotation	bar	210	psi	3050
Oil flow	l/min	250	gpm	65
Oil Flow Rotation	l/min	40	gpm	10
Jaw width	mm	1200	in	47,2
Jaw open:	mm	2900	in	114,2
Height:	mm	2000	in	78,6
Closing force:	Kn	80	Kn	80
